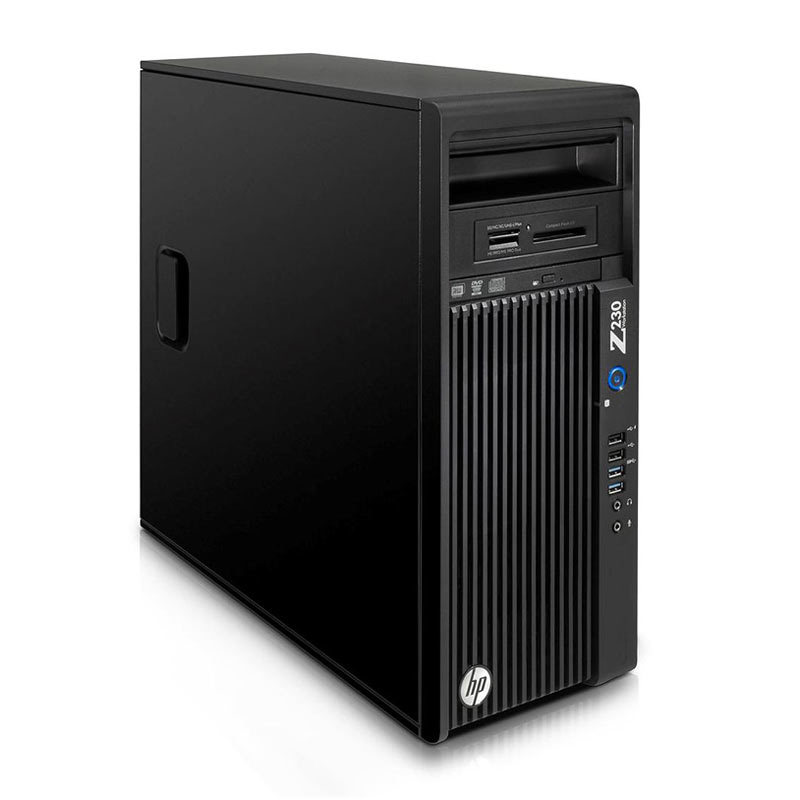

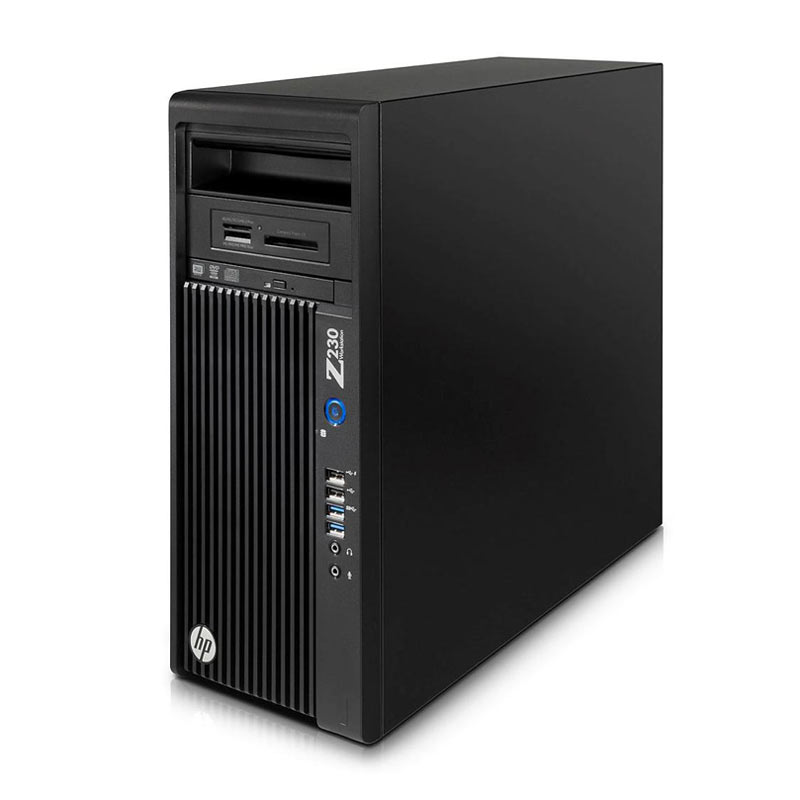

| System Board Form Factor |
ATX 27.69 x 24.38 mm (10.9 x 9.6 inches) |
| Processor Socket |
Single LGA-1150 |
| CPU Bus Speed |
DMI |
| Chipset |
Intel® PCH C226 |
| Memory Expansion Slots |
4 DDR3 memory slots |
| Memory Type Supported |
DDR3, UDIMM (Unbuffered), ECC& non-ECC |
| Memory Modes |
Non-Interleaved for single channel. Interleaved when both channels are populated. |
| Memory Speed Supported |
1600MHz DDR3 |
| Memory Protection |
ECC available on data |
| Maximum Memory |
32GB |
| Memory Configuration (Supported) |
4GB and 8GB non-ECC/ 2GB, 4GB and 8GB ECC unbuffered DIMMs are supported. |
| ECC and non-ECC memory DIMMs cannot be mixed on the same system. |
| PCI Express Connectors |
1 PCI Express Gen3 slot x16 mechanical/ x16 electrical (full height, full length) |
| 1 PCI Express Gen2 slot x4 mechanical/ x1 electrical (full height) |
| 1 PCI Express Gen2 slot x16 mechanical/ x4 electrical (full height, full length) |
| 1 PCI Express Gen2 slot x1 mechanical/ x1 electrical (full height) |
| PCI Connectors (5.0V) |
1 PCI slot, full height, full length |
| Supported Drive Interfaces |
SATA |
Integrated (5) Serial ATA interfaces (6Gb/s SATA). One port can optionally be used for eSATA. |
| RAID 0 and 1 supported. Factory integrated RAID is Microsoft Windows only. RAID 5 is supported by Software XOR. |
| Serial Attached SCSI |
None |
| Integrated RAID |
NOTE: Requires identical hard drives (speeds, capacity, interface) |
| Integrated Graphics |
Intel HD Graphics 4600 (on Core i5/i7-4xxx processors); |
| Intel HD Graphics P4600 (on Intel Xeon E3-12x5v3 processors). |
| |
| Based on Unified Memory Architecture (UMA)- a region of system memory is reserved and dedicated to the graphics display. |
| |
| Support for Microsoft DirectX 11, OpenGL 4.0 and OpenCL 1.2 on Intel HD Graphics P4600; |
| 1 DVI-I and 2 DP 1.2 graphics ports integrated in motherboard; Supports up to three simultaneous displays across DP & DVI-I outputs. |
| |
| Max. resolution supported on DVI- I ports: 1920x1200 @60Hz |
| Max. resolution supported on DP 1.2 ports: 3840x2160 @60Hz |
| Network Controller |
Integrated Ethernet PHY Connection I217LM. Management capabilities: WOL, PXE 2.1 and AMT 9 |
| External SATA (eSATA) |
1 port eSATA capable (SATA 5) with optional eSATA After-Market Option cable kit. |
| IDE connector |
No |
| Floppy connector |
No |
| Serial |
1 internal header (requires optional Serial Port Adapter Kit) |
| 2nd Serial |
No |
| Parallel |
1 internal header (optional Parallel Port Adapter required) |
| HD Integrated Audio |
Yes |
| CD-ROM input (Audio) |
No |
| AUX input (Audio) |
No |
| IEEE 1394 Connector(s) |
Rear |
2 IEEE 1394b ports (requires optional PCIe 1394b card) |
| Internal |
No |
| USB Connector(s) |
Front |
2 USB 3.0, 1 USB 2.0, 1 USB 2.0 Charging Data Port. |
| Rear |
2 USB 3.0, 4 USB 2.0 |
| Internal |
1 USB 3.0 and 3 USB 2.0 ports available as 2 separate 2x10(3.0 x1,2.0 x1) and 2x5(2.0 x2) headers: supports 1 HP Internal USB Port Kits plus one USB 3.0 Media Card Reader. |
| HD Integrated Audio |
Yes |
| Flash ROM |
Yes |
| CPU Fan Header |
Yes |
| Chassis Fan Header |
1 Rear System Chassis Fan Header, 1 Optional Front Chassis Fan Header |
| Front Control Panel/Speaker Header |
Yes |
| CMOS Battery Holder - Lithium |
Yes |
| Integrated Trusted Platform Module |
Integrated TPM 1.2. |
| Power Supply Headers |
Yes |
| Power Switch, Power LED & Hard Drive LED Header |
Yes |
| Clear Password Jumper |
Yes |
| Keyboard/Mouse |
USB or PS/2 |
